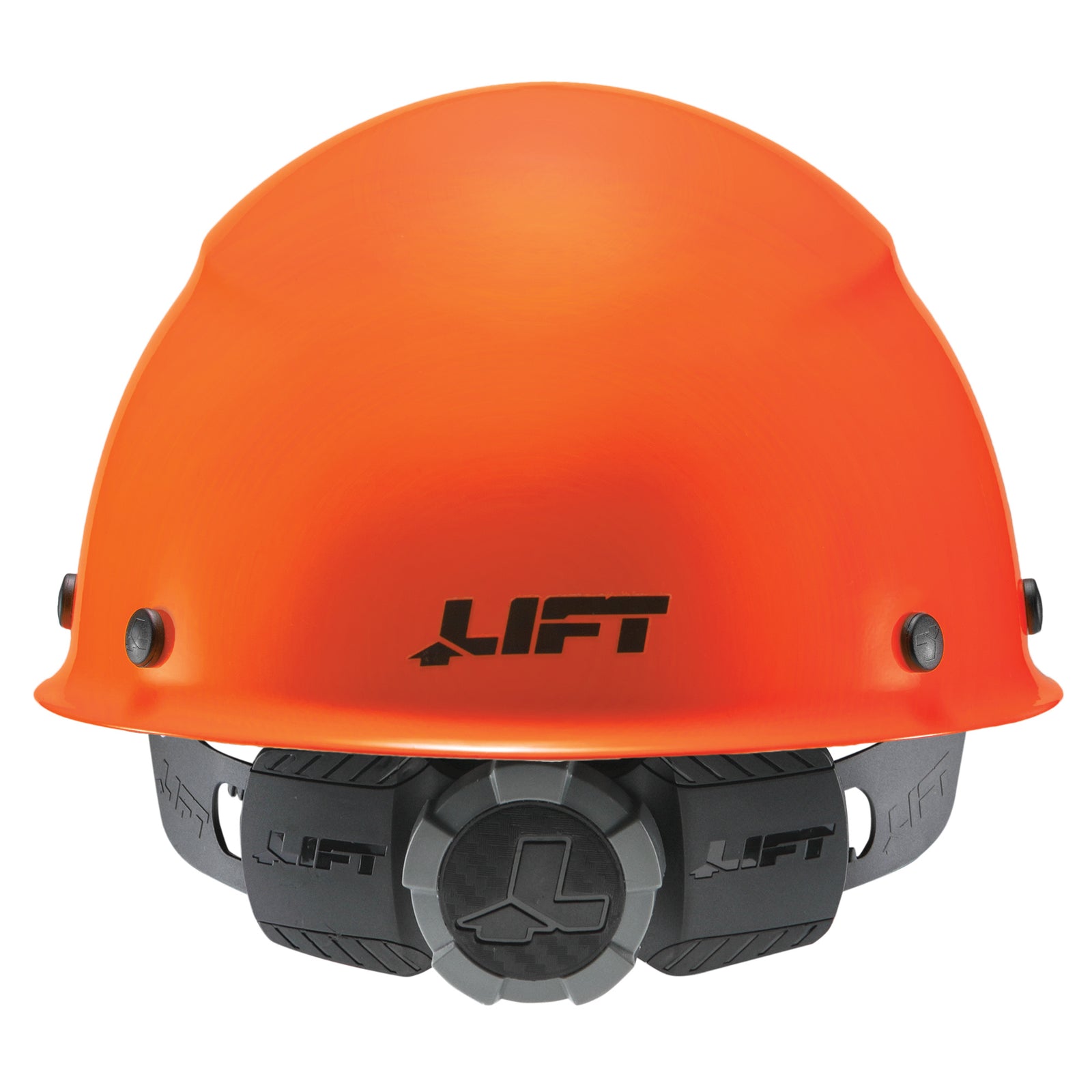

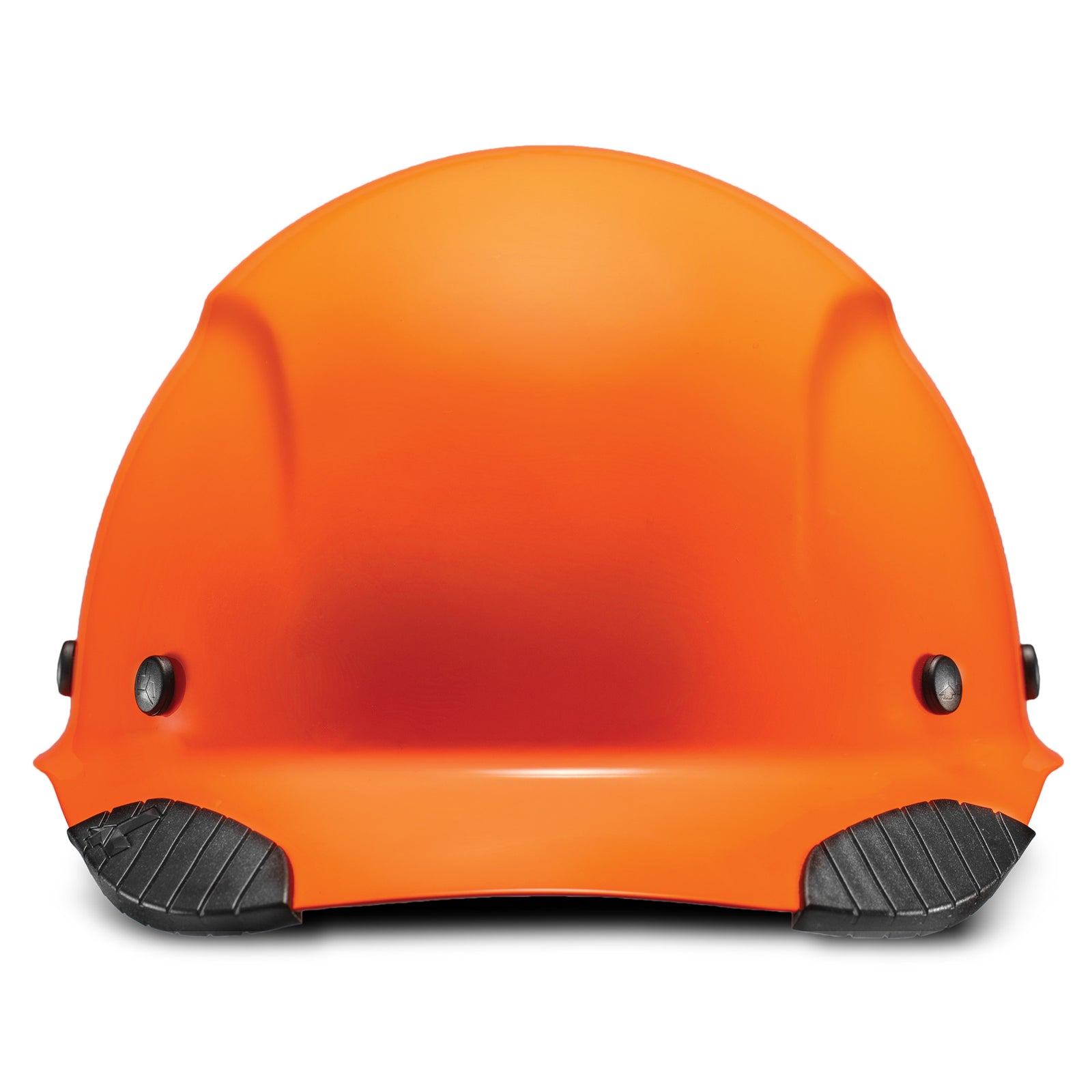

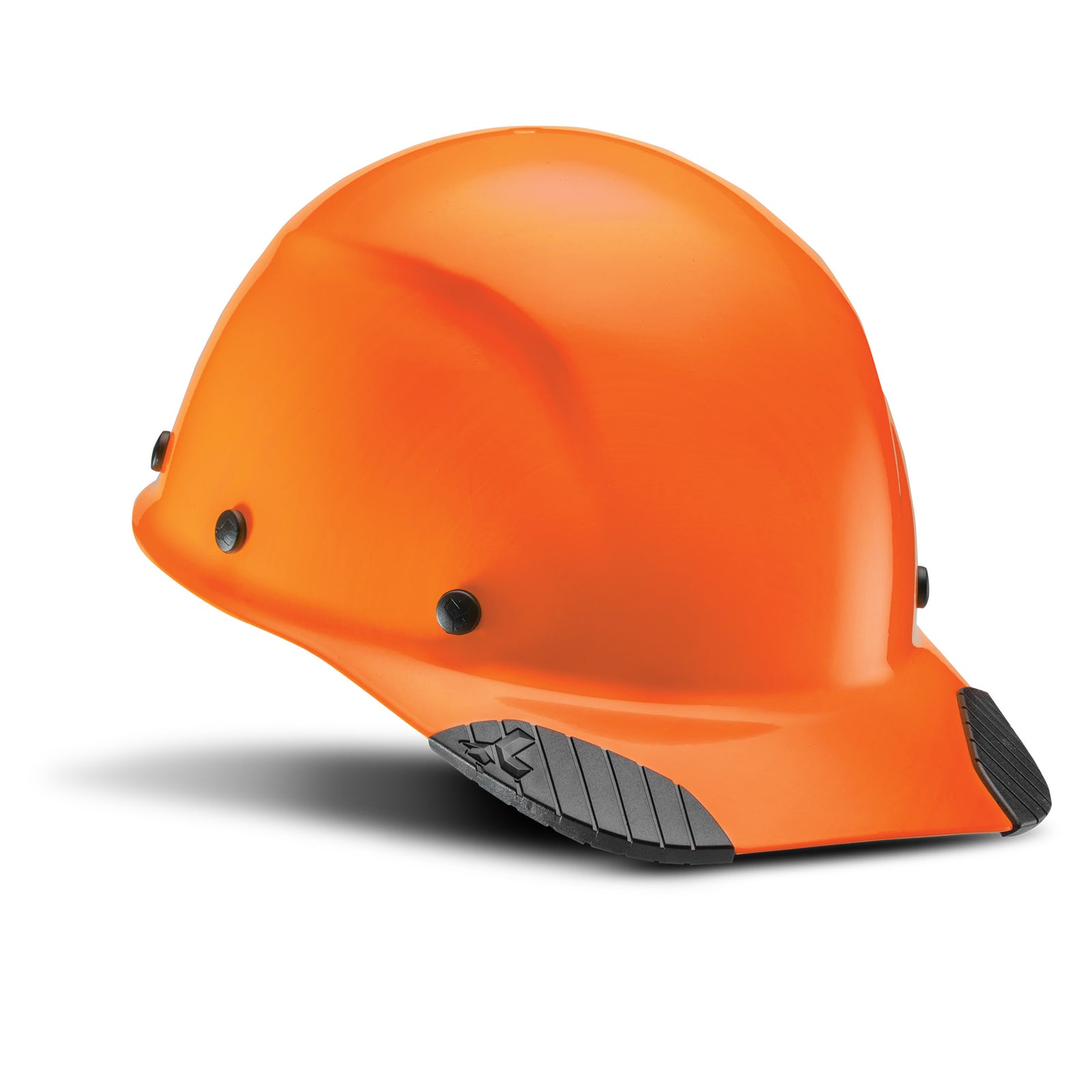

DAX Cap - Hi-Viz

HDFC-18HV

Color
Hi-Viz Yellow
Hi-Viz- Orange

Features

The DAX Hi-Viz Cap HardHat is a fiber reinforced resin hard hat offering a 6 point suspension system for superior comfort and impact protection. It features an innovative synthetic leather comfort dome and an over-sized ratcheting fitment dial that makes adjustment easy even while wearing gloves.

  • Fiber reinforced resin shell for superior impact protection
  • Brim grip, exclusive design provides a secure feel
  • Perforated synthetic leather comfort dome with molded EVA foam insert for additional shock absorbing protection to the top of head
  • Oversized ratcheting fitment dial to adjust size, easy to grip and use with gloves on
  • Meets ANSI Z89.1-2014 REQUIREMENTS FOR TYPE 1 CLASS G / HV
  • Designed to offer outstanding protection in hot and dangerous industries, the DAX Hard hat shell has been tested to radiant heat loads producing temperatures up to, but not exceeding, 350˚ F (177˚ C).
  • Moisture-wicking foam backed microfiber liner reduces sweat build-up
  • 6 point suspension system for a secure, comfortable fit
  • Triple reinforced crown for superior impact protection

Hard Hat Weight

Our Hi-Viz Hardhat Weighs in at an average 410 grams without suspension system. With suspension it weighs on an average of 450 grams.

Uniquely Designed

Each Dax hard hat fiber shell is hand laid giving it a unique, one of a kind appearance.

Hard-Hat Classifications

Want to learn more about our hard hats and their classifications? Click here.

Notice

Hi-Visibility hard-hats may fade after extended periods of time in direct sunlight.

CSA Standard: This product currently does not carry the certification established by the Canadian Standards Association (CSA).

Lifespan

Hard hat lifespan may vary depending on the conditions of each work site. Hard hats subjected to more wear and tear or used outdoors in direct sunlight may need to be replaced more frequently. Daily inspections are the best way to determine when to replace a hard hat shell, suspension, or the entire unit. Suggested replacement is based on service life (Based on when the hard hat was placed into service, not the manufacture date).

As a general guideline we recommend replacing hard hats every five years regardless of outside appearance, but this can vary due to use and job site conditions

To Remove & Rotate your Suspension

Our DAX Cap-style Hard Hat can be worn in reverse by simply removing the suspension and rotating it. Below are instructions to remove the suspension and reattach it in the direction you prefer.

To Remove:

  1. Firmly grasp the black strap between your thumb and closed pointer finger
  2. Using your thumb as leverage on the hard hat’s bottom edge, apply pressure upwards while keeping the black strap as close to the hard hat’s top shell as possible.
  3. When enough pressure is applied the metal clip will make a ‘pop’ indicating it is clear of the rivet.
  4. Remove the full clip and continue on until all six clip points are disconnected.

To Re-attach:

  1. Slip the metal clip’s two prongs (facing towards the top of the hard hat) over the rivet.
  2. Grip the black strap between thumb and forefinger and apply pressure towards the hard hat’s top.
  3. The metal clip will make a ‘pop’ indicating it’s locked into position.
  4. Install the remaining clips in the same fashion in a clockwise motion.
